Large-Scale RO Systems
Including the gold-standard PX Q Series, Energy Recovery’s PX products provide unmatched energy recovery for large seawater reverse osmosis (SWRO) desalination systems, driving down costs and making desalination affordable®.
PX Q650: At a Glance
Highest Capacity on the Market
650 gpm (147.6 m3/h) peak flow, 63% capacity increase over previous model
Ultra-High Efficiency
Up to 99% peak efficiency
Ultra-Low Mixing
As low as 2% volumetric mixing
Wide Operating Flexibility
The highest turndown ratio available
Low Operating Expenses
Lowest SEC, minimizing total cost of ownership
Reliable
30‑year design life and unmatched uptime

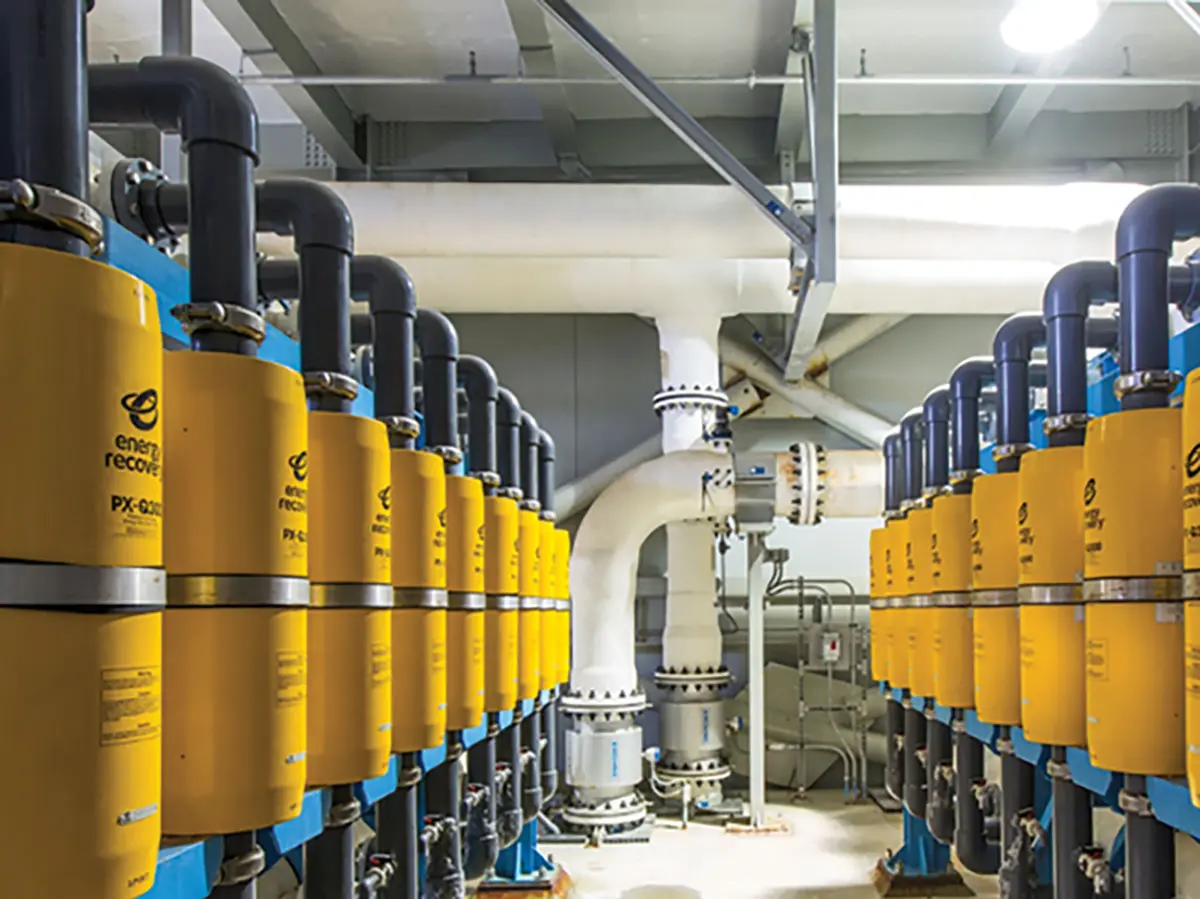

Constructed from corrosion-resistant ceramic and designed with only one moving part, the PX Q650 is easy to use, highly durable, and ideal for harsh desalination environments. These ceramic components are unique and machined in-house using our vertically integrated and highly specialized manufacturing processes, which create precision down to the micrometer level and a consistently high performing product.
The PX Q650 supports a 30-year design life with no scheduled maintenance, leading to incredibly low design life costs, high uptime, and industry-leading reliability.
What Our Customers Say
The Solution
99%
Peak efficiency of PX devices
30
Industry-leading 30-year design life with no scheduled maintenance
60%
Potential energy reduction in SWRO desalination facilities
22.5M
Metric tons of carbon emissions avoided by our customers annually

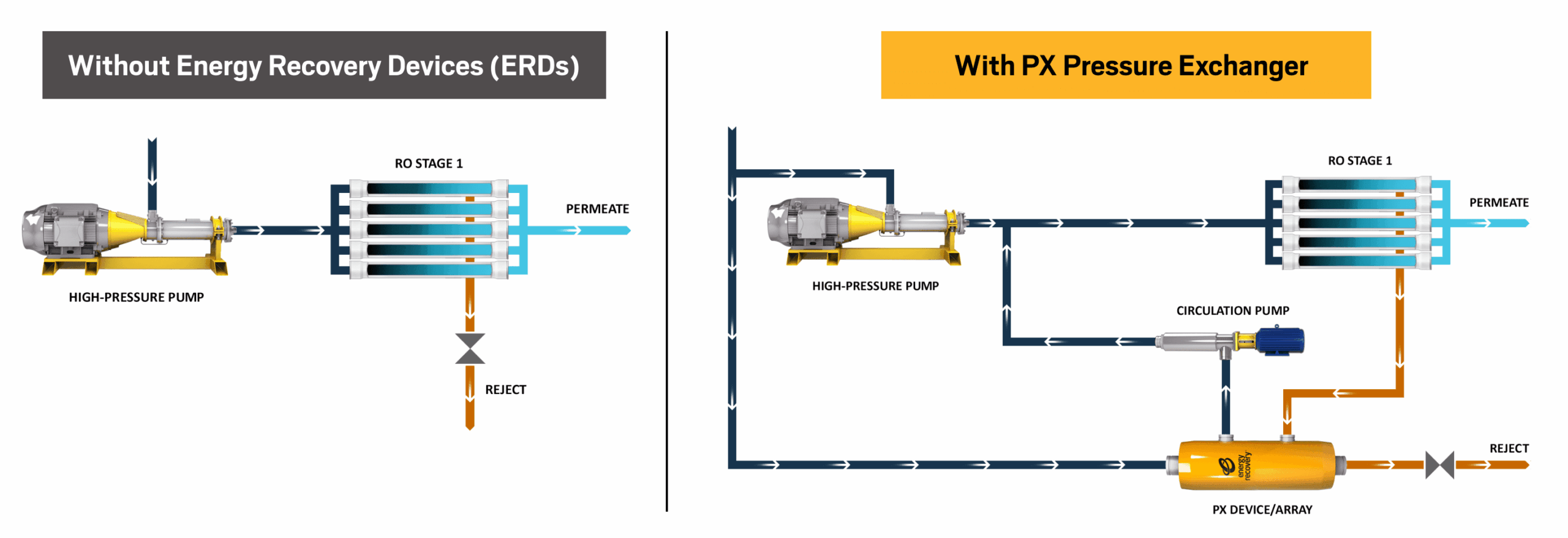

Without an Energy Recovery Device (ERD), a high-pressure pump pushes water into a reverse osmosis system where there is rejected seawater that ends up being wasted energy. Equipped with a PX® Pressure Exchanger®, the rejected water is fed back into an ERD that recovers energy and then powers a circulation pump that reduces energy demand on the high-pressure pump—creating a desalination process that’s both optimized and maximizes savings.
