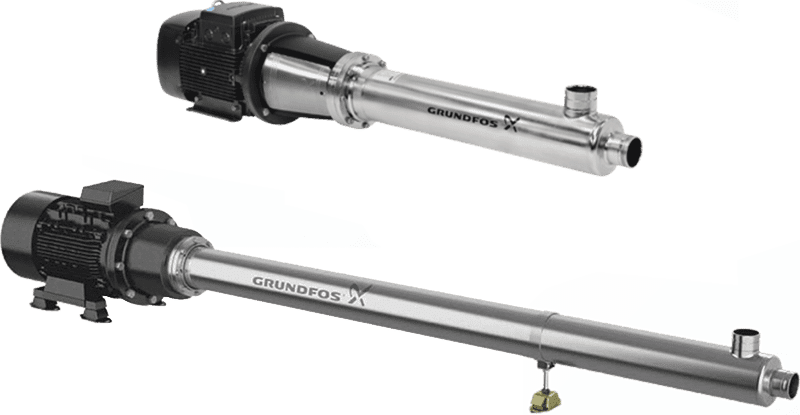

ATMP High-Pressure Pumps

Energy Recovery has partnered with a leader in pumping systems, Grundfos, to offer the ATMP high-pressure pump. The ATMP is a high speed, multistage feed pump ideal to combine with the Energy Recovery PX Pressure Exchanger or AT Turbocharger energy recovery device. ATMP is ideal for small to medium-scale reverse osmosis systems where reliability matters. Ideal for a wide range of applications, the Energy Recovery ATMP is great for when you need a high quality, virtually maintenance-free centrifugal pump for a wide range of applications.

Made of durable Duplex, Super-Duplex, and 904L, the ATMP is made to last and provide seawater reverse osmosis plants with the right solution to ensure performance. With several models to choose from, there is a solution to fit each facilities specifications.

Specifications

400 m3/h (1,760 gpm)

Flow capacity

1 bar/30 bar/65 bar

Minimum and maximum inlet pressure for XL and non-XL models

5500 RPM

Maximum speeds

83 bar (1200 psi)

Max discharge pressure

Benefits

  • Enhanced corrosion resistance
  • Built-in check valve
  • Ease of maintenance
