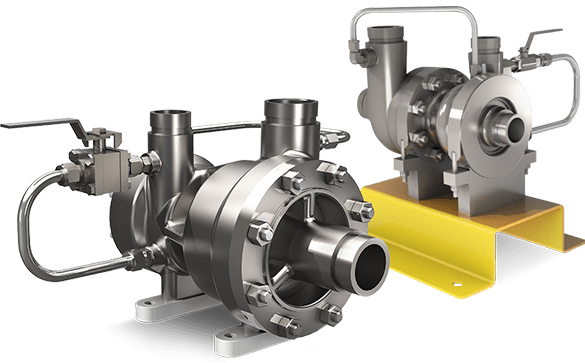

AT Turbocharger


Perfected for High-Pressure Environments

The AT turbocharger is an efficient, versatile, and reliable solution designed with a compact footprint—no instrumentation or additional equipment is necessary. In addition, it requires minimal installation time and operator training. With the turbocharger’s completely removable and replaceable hydraulics, plant staff can quickly and inexpensively change operating conditions as needed while maintaining facility uptime.

This modular technology consists of pump and turbine volutes, a turbine nozzle and pump-side discharge diffuser. Ideal for any size SWRO system, the AT Turbocharger handles flows from 11 to 2,272+ m3/h (10,000+ gpm) and pressures from 27 to 83 bar (400 to 1,200 psi). For a centrifugal solution, the innovative volute insert technology allows systems to perform within a best efficiency range rather than at a single best efficiency point. If system conditions change, requiring a new operating point, these lightweight inserts can be removed and replaced in hours instead of days or even weeks, maximizing facility uptime.

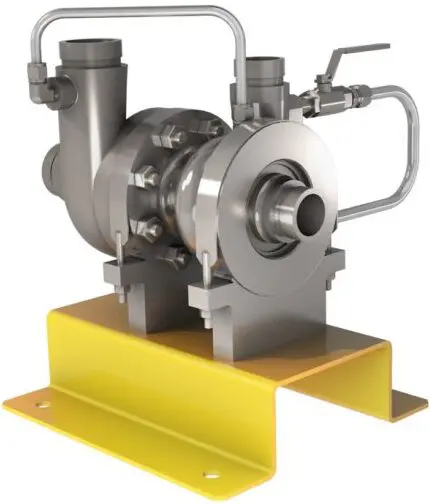

LPT Turbocharger

LPT TurboCharger

Optimized for Low-Pressure Systems

The LPT turbocharger is a low-cost energy recovery solution that’s ideal for low-pressure systems. Like our AT Turbochargers, the LPT line offers high-efficiency, long-term reliability and versatility in a compact footprint.

Designed for low-pressure applications such as multi-stage brackish reverse osmosis water treatment, this device handles flows from 205 to 908 m3/h (900 to 4,000 gpm) and pressures up to 45 bar (650 psi). The LPT is the ideal solution for two-stage systems where flux balancing and system optimization are desired. It can easily replace a booster pump for this service, providing equal or better performance all while requiring no electrical connections, motors, or drives.

Efficiency in one compact package

Our high-efficiency turbochargers offer high-performing energy recovery solutions in projects with smaller budgets—especially in locations where power costs are heavily subsidized or there’s a need to mitigate upfront capital spending.

Designed to last

Every Energy Recovery turbocharger consists of a single-stage turbine impeller connected to a single-stage pump impeller via a common shaft. All hydraulics are housed within the casing, with no seals required.

How it works

The turbine impeller absorbs the hydraulic energy of the concentrate stream and converts it into mechanical energy. This energy is then transferred to the pump impeller. The impeller converts the mechanical energy back to hydraulic energy, providing an additional pressure boost to the feed stream of brackish or seawater reverse osmosis (SWRO) systems.

Backed by expert support

Easy to maintain, our turbochargers are supported by highly qualified and seasoned technical field services professionals around the clock.
